Product Series：Tandem Uv Silicone And Hot Melt Adhesive Coating Machine

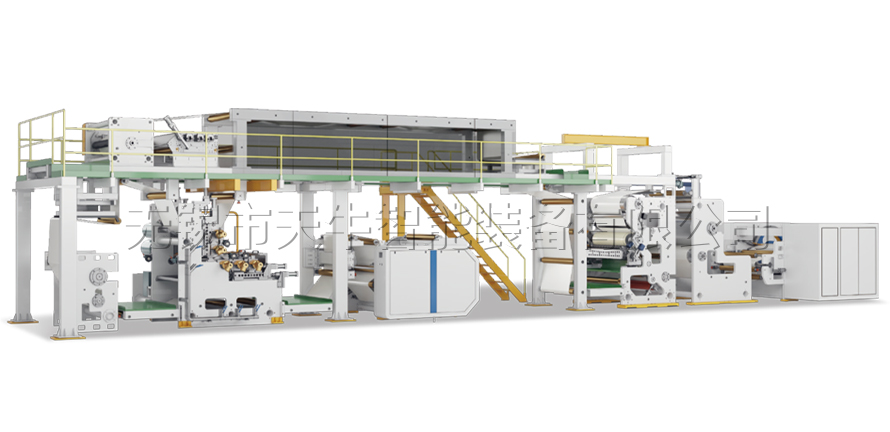

TN-MFUVSH-1200-250 Tandem Uv Silicone And Hot Melt Adhesive Coating Machine
Field of Application
Suitable for the production of anti-counterfeiting labels, paperless labels, silent tape and other products
Features
Equipped with solvent-free UV release agent multi-roll transfer coating head;
Equipped with UV special non-scratch hot melt adhesive mold;
Design speed: 300m/min;
Coating amount: UV silicon 0.5~2g/m2, UV hot melt adhesive 10~50g/m2;
Coating accuracy: UV silicon ±0.1g/m2; UV hot melt adhesive ≤±1g/m2 (sizing amount 25g/m2);
Standard roller surface width: 1200, 1450, 1750mm, other widths can be customized.
Standard: double station unwinding, correction system, transfer head cooling traction mechanism, hot melt head, double station asymmetric coil.
Optional: Substrate cleaning device, shafeless clamp rewinding, glue-coated gram weight detector, substrate corona device
The UV curing device can be brought by the user
